humidity controlled dry storage cabinets

XC 575 | 603L 3D Printer Dry Cabinet

XC Series | <5% RH Dry Cabinet

< 5 % RH

XC-3D68 3D Printing Filament Dry Cabinet

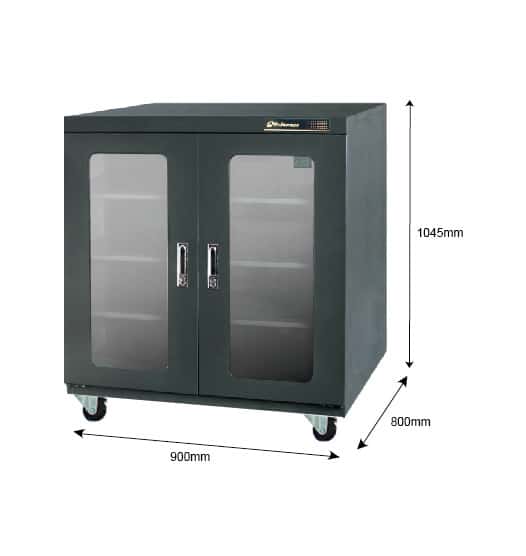

Cabinet Specs:

External Size(in): W35.43 X D31.49 X H41.14
Internal Size(in): W35.35 X D30.39 X H34.35
External Size(mm): W900 X D800 X H1045
Internal Size(mm): W898 X D772 X H870
Capacity: 603L
Power Consumption: Ave. 55W/h, Max. 150W
Cabinet Color: Black

Calibration certificates available with any cabinet or hygrometer purchase upon request.

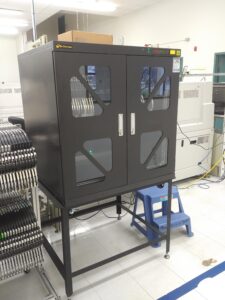

Dry Cabinet for 3D printer filament storage
=

Maintains Humidity Level below 5% RH

=

Track Humidity levels for easy management

=

Recovers to less than 5% RH within a half hour of opening

The 3D Dry Humidity Controlled Printer Cabinet is the next evolution in 3D Printing. Not simply for storage, it allows you to place your entire print system inside the humidity controlled environment. This creates dust free clean storage for your 3D printers and filament, provides extra protection from temperature and humidity fluctuations, allows printed parts to cool evenly and contains unpleasant material odors.

We highly recommend the XC 575 Dry Cabinet as a 3D Printer Cabinet as it maintains an internal environment of <5%RH. All XC Series Dry Cabinets are plug and play, feature a rugged air tight design and are available in six different sizes.  Each cabinet come standard with an anti-static package, adjustable shelves, wheels, locking doors, decimal digital display and a countdown calibration reminder.

The XC 575 is specially designed to store and protect moisture sensitive devices (MSD) from humidity related damage and complies with the IPC/Jedec J-STD-033 standards. It eliminates the oxidation of stored parts and is particularly useful for storing 3D Printers and printing filament, as well as SMT components, component reels, high tech manufacturing devices, precision metal parts, miniature devices, pharmaceutical substance, biotic specimens, battery, crystal, IC package module, optical lens or scientific instruments.



Dry Cabinet Relative Humidity Recovery Graph for Desiccant Dry Cabinet, Dessicant Cabinet, Nitrogen Dry Cabinets and Dry Cabinet Accessories

Precision CP03 Hygrometer

Simultaneously display temperature & humidity values.

Measurement range:
1-99%RH, 0-50℃

Display Precision: ±3%RH, ±1℃

Designed for measuring in low humidity environment.

Reliable Dehumidifier

PPS material: 230°C heat tolerance to avoid any deforming or melting of dehumidifiers.

Modular design for easy maintenance & painless upgrade.

Silent, drip less, frostless operation.

Storage Bins

Inside Bin: Store and retrieve important items quickly to shorten the door opening time. (*Optional)

Outside Bin: Ideal for work sheet & quality instructions for better QA management. (*Optional)

Maximum loading of bin: 5Kgs

Adjustable Shelves

Shelves can be flexibly installed in any position.
